   MOS-600 Series

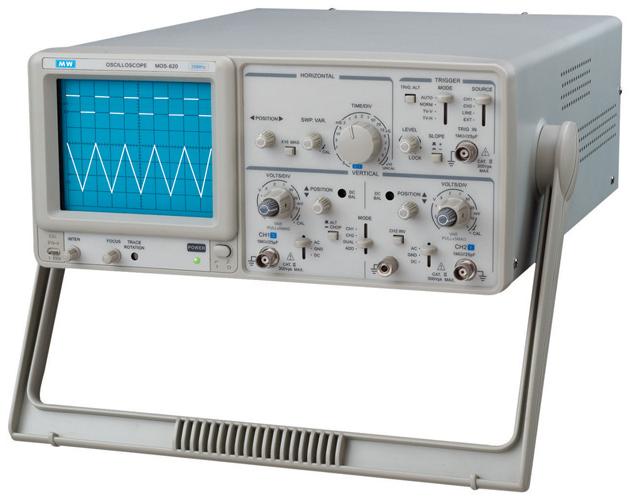

MOS-600 Series standard oscilloscope



Feature:



Ÿ         High luminance,internal graticule Toshiba CRT

Ÿ         Japanese electronic encoder,light,handy and reliable

Ÿ         Fully sealed long live vertical mode switch

Ÿ         ALT Triggering Function. Two independent signals

Ÿ         simultaneous observation

Ÿ         Triggering Level Lock Function, Automatic Synchronize Function

Ÿ         20MHz/40MHz/50MHz Dual Channel

Ÿ         High Sensitivity 1mV/DIV

Ÿ         Z Axis lnput

Ÿ         CH1 Output

Ÿ         10 times sweep magnification

Ÿ         TV Synchronization,X-Y mode

   information technology product catalogue [view]

Model
Bandwidth
Rise time
Vertical sensitivity
The highest sensitivity
Scan time
20MHz 17.5nS 5V/DIV-5mV/DIV 1mV/DIV 0.2uS~0.5S/DIV
40MHz 8.75nS 5V/DIV-5mV/DIV 1mV/DIV 0.2uS~0.5S/DIV
50MHz 7nS 5V/DIV-5mV/DIV 1mV/DIV 0.2uS~0.5S/DIV
