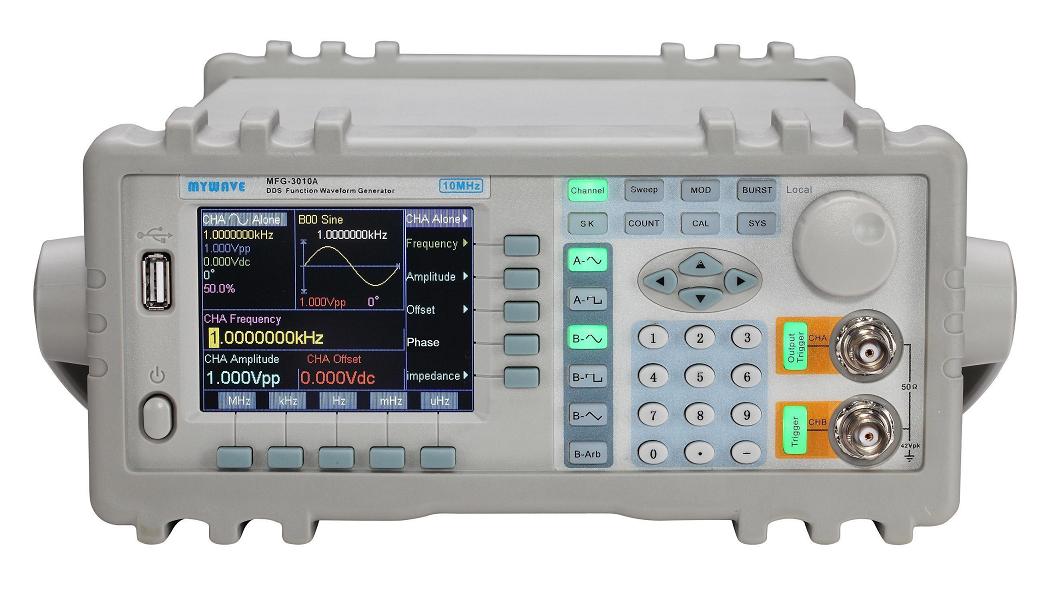

MFG-3000A Series DDS Function Generator
Based on the direct digital synthesis (DDS) technology and unique FPGA design, MFG-3000A Series are built with exceptionally performance far exceeding that of any conventional function generators at a very competitive price. Stable output frequency, low distortion, fine frequency resolution and small signal output are the most remarkable characteristics of this product series.
MFG-3000A Series include three members at 10MHz, 20MHz and 40MHz bandwidth. MFG-3000A Series provide 180MSa/s sample rate, 10bits vertical resolution, ±1ppm stability level, output waveform accuracy and multiple other functions, including FM, AM, FSK, PSK, frequency sweep, amplitude sweep, burst, CHA&CHB add, channel B arbitrary waveform and 200MHz frequency counter etc., which can meet users' diversified needs. What's more, the TFT display, user-friendly interface design and panel layout bring users exceptional experience. The remote control of the generator can be easily done through standard configuration interfaces of USB and RS232 devices. These features make MFG-3000A Series excellent circuit debug tools for engineers.
Features
• Direct Digital Synthesis (DDS) technology, 2 independent output channels
• 3.5-inch TFT display, English/Chinese menu
• 32 built-in pre-stored waveforms and 8 user defined arbitrary waveforms in channel B
• Minimum output amplitude: 1mVpp (high impedance)
• Maximum resolution: 1µVpp (high impedance)
• Multiple modulation functions: FM, AM, FSK, PSK
• Frequency sweep, amplitude sweep, burst and CHA&CHB add functions
• Free to set the phase of the signal (Sine) from two channels
• Over voltage, over current, output short-circuit and reverse voltage protections
• Standard parts: 200MHz frequency counter, RS232 interface, USB interface
For detailed performance parameters and technical specifications, refer to MFG-3000A Series Data Sheet.
|
