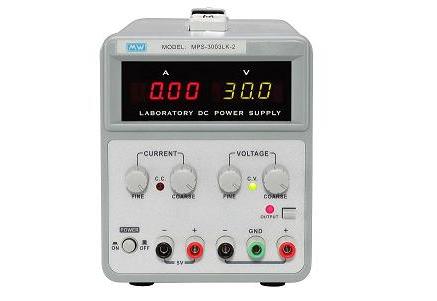

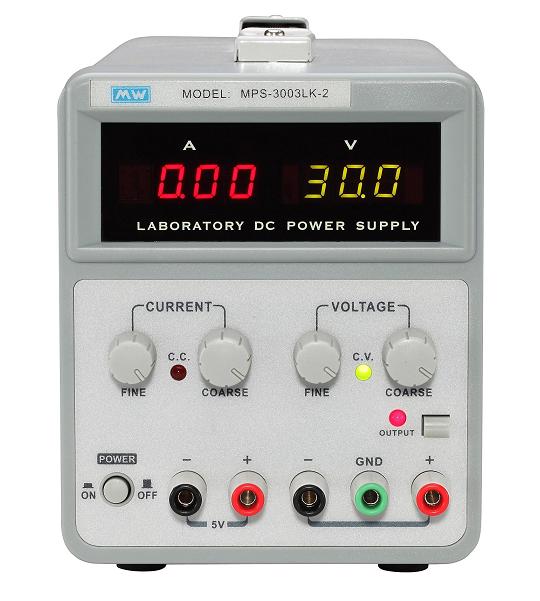

MPS-3003LK-2 series with a single analog power off
Feature:
Two Digital Panel Meters
Overload and Reverse Polarity Protection
Constant Voltage, Constant Current, Low ripple noise, Low temperature drift
Preset current limited point
information technology product catalogue [view] |
Model |
Output voltage |
Output rated current |
Measurement resolution |
Size |
Weight |
|
0～30V×1 5V×1 , |
0～3A 1A×1 , |
Voltage: 100mV current: 10mA, |
310(D)*160(W)*130(H)mm , |
5kg , |
|
0～30V×1 5V×1 , |
0～5A 1A×1 , |
Voltage: 100mV current: 10mA, |
330(D)*255(W)*155(H)mm , |
6.3kg , |
|
0～60V×1 5V×1 , |
0～3A 1A×1 , |
Voltage: 100mV current: 10mA, |
310(D)*160(W)*130(H)mm , |
6.5kg , |
|
