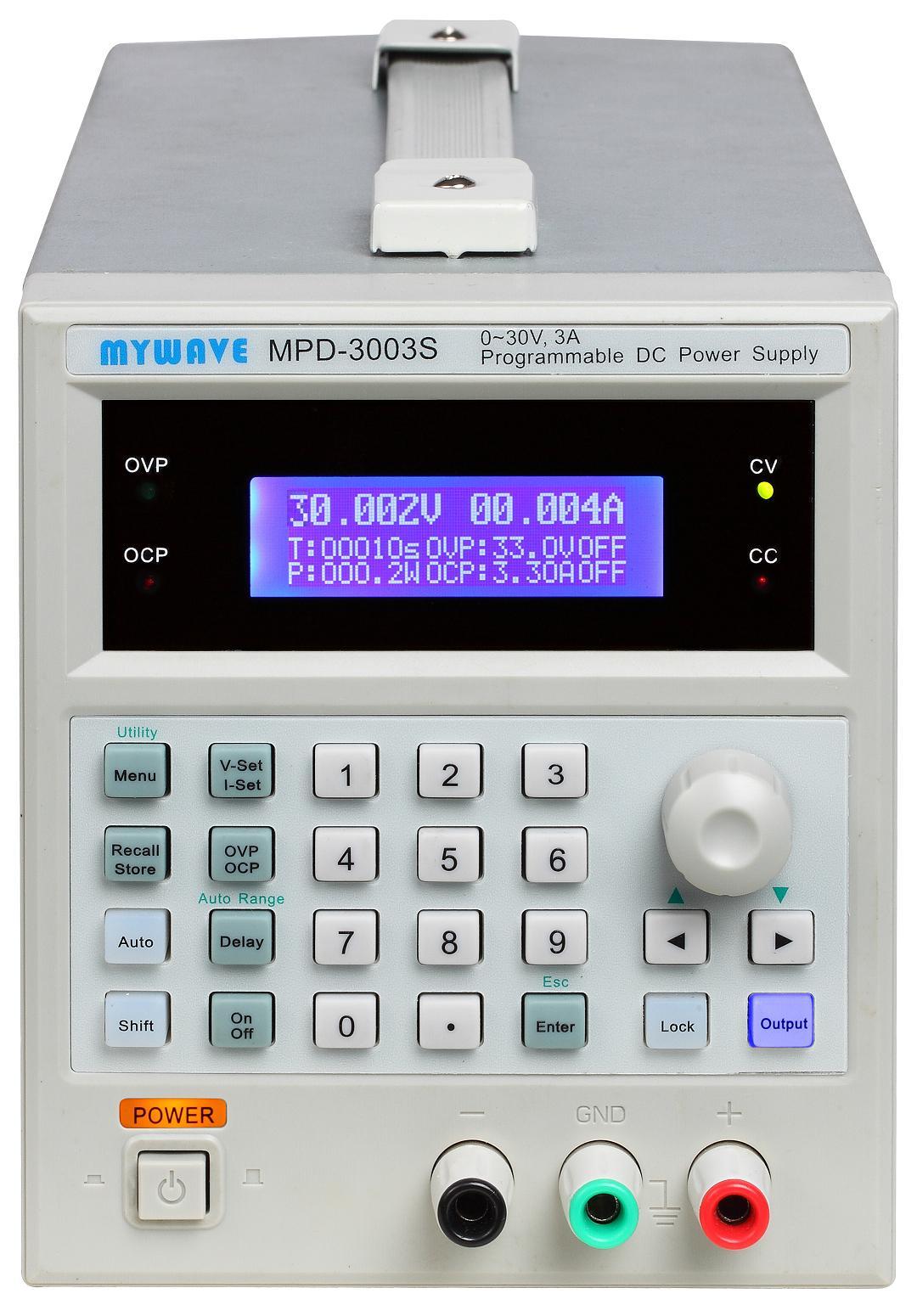

   MPD-3003S Series



MPD-3003S Series

Single Output Programmable Linear DC Power Supply

This MPD-3003S series Single Output Programmable Power Supply is controlled by Micro Processor Unit (MPU) with extreme high accuracy, which can easily connect communication interface RS-232 or USB to computer in order to satisfy users’ demand for auto-testing and auto-control. The software commands are fully complied with the SCPI format, it is convenient for user to proceed auto-tested and auto-controlled application program. Also, the digitalization of system makes a speedy, precise and convenient input of information controlled by keyboard. The adjustment of voltage/current is made by software calibration without manual error that will increase the preciseness of the instrument.



Main Features

·               1mV/0.1mA high resolution

·               24 bits ADC and 16 bits DAC, high accuracy

·               Safety design: OLP, OVP, OCP, OTP and reverse polarity production

·               Auto CC and CV switch

·               122×32 LCD display

·               Convenient and high efficiency operation of setting interface, high speed rotary knob and numeric key input

·               Warning buzzer

·               Key-lock to prevent improper operation

·               Output ON/OFF control

·               Save and Recall function of 100 groups setting and proceed together with auto operation can achieve the purpose of auto test

·               Standard interface: USB or RS232

·               Support SCPI commands

For detailed performance parameters and technical specifications, refer to Single Output Programmable  DC Power Supply Data Sheet.



Model
Output range
Output ratings
Save /Recall
RS232 or USB interface
single range 0~30V/0~3A 100 sets Provided
single range 0~30V/0~5A 100 sets Provided
