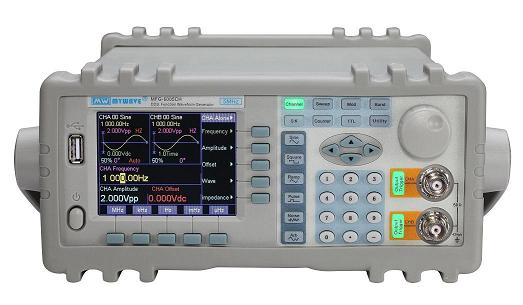

MFG-6000CH Series Function/Arbitrary Waveform Generator



Based on the direct digital synthesis (DDS) technology and unique FPGA design, MFG-6000CH Series generate 32 pre-stored waveforms and 8 user defined arbitrary waveforms and offer stable output frequency, low distortion and fine frequency resolution.



MFG-6000CH Series include four members at 5MHz, 10MHz, 15MHz and 20MHz bandwidth. MFG-6000CH Series provide 100MSa/s sample rate, 8bits vertical resolution, 1kpts waveform length, high stability level, output waveform accuracy and multiple modulation functions, including FM, ASK, FSK, PSK, frequency sweep, amplitude sweep, burst, etc., which can meet users' diversified needs. What's more, the TFT display, user-friendly interface design and panel layout bring users exceptional experience. The remote control of the generator can be easily done through standard configuration interface of RS232 device. Additionally, the extendable optional functions of frequency counter and power amplifier accommodate a wide range of applications.

Features

·         Direct Digital Synthesis(DDS) technology, 2 independent output channels

·         100MSa/s sample rate, 8bits vertical resolution,1kpts waveform length

·         32 kinds of built-in pre-stored waveforms, 8 groups of user defined arbitrary  waveforms

·         Minimum stable output waveform: 1mV(50Ω)

·         Multiple modulation functions: FM, FSK, ASK, PSK

·         Frequency sweep, amplitude sweep and burst functions

·         Over voltage, over current, output short-circuit and reverse voltage protections

·         Standard parts: RS232 interface

·    Optional parts: frequency counter, power amplifier

For detailed performance parameters and technical specifications, refer to MFG-6000CH Series Data Sheet.
